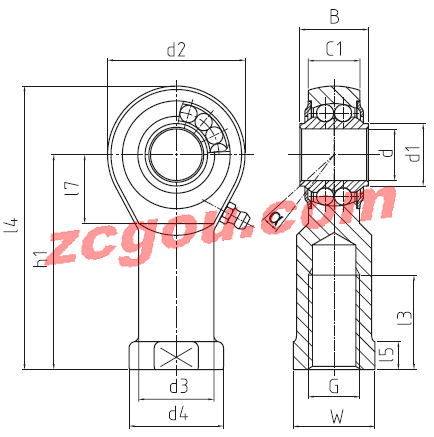

| type | right hand thread | left hand thread | d (mm) | G | B (mm) | C1 (mm) | h1 (mm) | d1 (mm) | d2 (mm) | d3 (mm) | d4 (mm) | l3 (mm) | l4 (mm) | l5 (mm) | l7 (mm) | weight (kg) | tilt angle alpha (°) | weight (kg) | rotational speed limit n max. (min-1) | axial factor Y | axial factor Y0 | basic load rating dyn C (kN) | basic load rating stat Co (kN) | radial clearance CN (?m) | d (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BRF 12 - 01 | -501 | -502 | 12 | M 12 x 1,25 | 16 | 12 | 50 | 14.6 | 32 | 17.5 | 22 | 22 | 66 | 6.5 | 16 | 19 | 7.5 | 0.107 | 1125 | 1.74 | 1.82 | 5 | 1.8 | 10 - 30 | 12 |

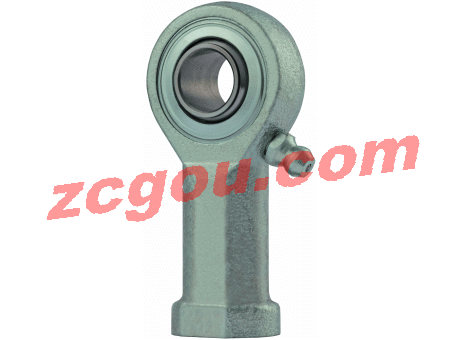

- 产品型号: BRF12-01
- 主要类别：杆端关节轴承
- 应用行业:tooth filling,dynamic blood pressure,Vertical pull,Forging machine,municipal machinery,Storage Tool,Industrial,Digital Generator,packing equipment,Pneumatic Actuator,baler
- 近似型号:BRF 16 - 60 BRF 16 - 01 BRF 25 - 60* BRF 3/8 - 00 BRF 12 - 61* BRF 1/2 - 00 BRF 40 - 00 BRF 12 - 00 BRF 1/1 - 01 BRF 1/4 - 00
BRF10-61* BRF16-61* BRF30-00 BRF10-60 BRF30-60* BRF06-00 BRF16-00 BRF3/4-00 BRF12-61* BRF16-60 BRF12-00 BRF14-00 - 天津八零动力国际贸易有限公司专业经销德国DURBALBRF12-01轴承，常年备货杜巴丽DURBAL BRF12-01 杆端关节轴承. 我们可以快速将您所需要的德国杜尔巴DURBALBRF12-01产品运送到全球任意地方购买 DURBAL BRF12-01 我认准八零动力工业，价格低，品种全，交货快，质量有保证！ 杆端关节轴承订购电话022-58519723/22/21
