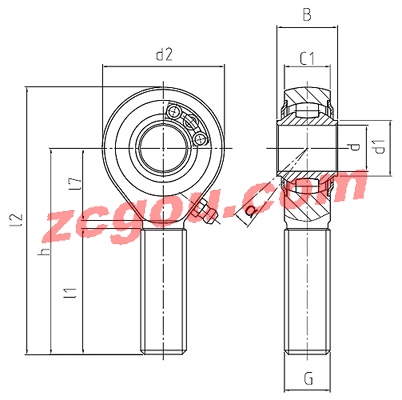

| type | right hand thread | left hand thread | d (mm) | torque moment (N.m) | G | B (mm) | C1 (mm) | h (mm) | d1 (mm) | d2 (mm) | l1 (mm) | l2 (mm) | l7 (mm) | tilt angle alpha (°) | weight (kg) | rotational speed limit n max. (min-1) | basic load rating dyn C (kN) | basic load rating stat Co (kN) | radial clearance CN (?m) | d (mm) | note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BRTM 22 - 90* | -501 | -502 | 22 | 250 | M 22 x 1,5 | 28 | 20 | 84 | 25.8 | 54 | 51 | 111 | 26 | 8 | 0.47 | 480 | 16.38 | 12.11 | 10 - 30 | 22 | *on request, the housing can made as a turning part |

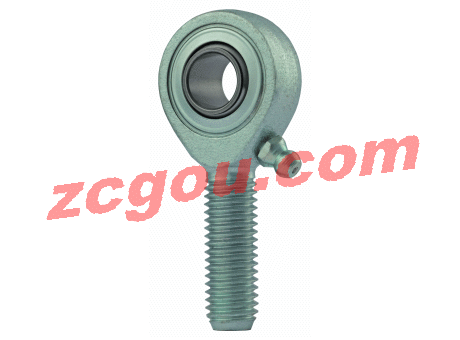

- 产品型号: BRTM22-90*
- 主要类别：杆端关节轴承
- 应用行业:garden machinery,medical equipment,plastic molding,fruit and vegetable processing,Water Monitoring,organic raw materials,Machine tool accessories,Surveying Surveying Instruments,power source,Industrial equipment,ventilation equipment
- 近似型号:BRTM 3/4 - 00 BRTM 1/1 - 01 BRTM 16 - 90 BRTM 12 - 60 BRTM 12 - 30 BRTM 16 - 30 BRTM 30 - 60* BRTM 16 - 60 BRTM 22 - 30 BRTM 12 - 00
BRTM10-60 BRTM1/2-00 BRTM25-30 BRTM30-90* BRTM25-00 BRTM40-00 BRTM12-60 BRTM35-00 BRTM3/4-00 BRTM16-30 BRTM20-90 BRTM25-90* - 天津八零动力国际贸易有限公司专业经销德国DURBALBRTM22-90*轴承，常年备货杜巴丽DURBAL BRTM22-90* 杆端关节轴承. 我们可以快速将您所需要的德国杜尔巴DURBALBRTM22-90*产品运送到全球任意地方购买 DURBAL BRTM22-90* 我认准八零动力工业，价格低，品种全，交货快，质量有保证！ 杆端关节轴承订购电话022-58519723/22/21
