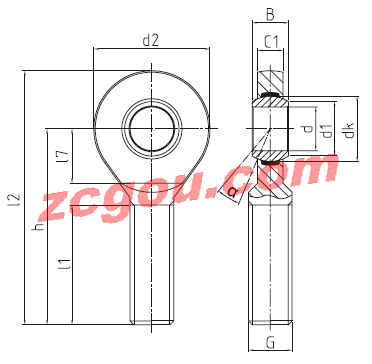

| type | right hand thread | left hand thread | d (mm) | G | B (mm) | C1 (mm) | h (mm) | d1 (mm) | d2 (mm) | dk (mm) | l1 (mm) | l2 (mm) | l7 (mm) | tilt angle alpha (°) | weight (kg) | basic load rating dyn C (kN) | basic load rating stat Co (kN) | radial clearance CN (?m) | d (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EM 40 - 20 | -501 | -502 | 40 | M 42 x 3 | 28 | 22 | 145 | 45 | 92 | 53 | 94 | 191 | 42 | 7 | 1.89 | 86 | 222.6 | 0 - 10 | 40 |
- 产品型号: EM40-20
- 主要类别：杆端关节轴承
- 应用行业:test strip,expectoration machine,miscellaneous instruments,Cylinder Standard,organic raw materials,shaft milling machine,Machine Tool Accessories,storage and transportation equipment,pneumatic Pump,metallurgy,Forming mold
- 近似型号:FGL 15 35 EEM FG 17 40 EEM BEM 05 - 60 EM 08 - 20 EMN 30 - 20 EMN 60 - 20 FGL 8 24 EEM BEMN 25 - 20 EMA 25 - 60 FGL 8 24 15 EEM
FGL3062EEM EM35-60 EMN25-30 BEM08-20 BEM06-60 FGL80140EEM EM25-20 EM17-60 EM60-61 BEMN30-20 EM35-20 GCRL72EE - 天津八零动力国际贸易有限公司专业经销德国DURBALEM40-20轴承，常年备货杜巴丽DURBAL EM40-20 杆端关节轴承. 我们可以快速将您所需要的德国杜尔巴DURBALEM40-20产品运送到全球任意地方购买 DURBAL EM40-20 我认准八零动力工业，价格低，品种全，交货快，质量有保证！ 杆端关节轴承订购电话022-58519723/22/21
