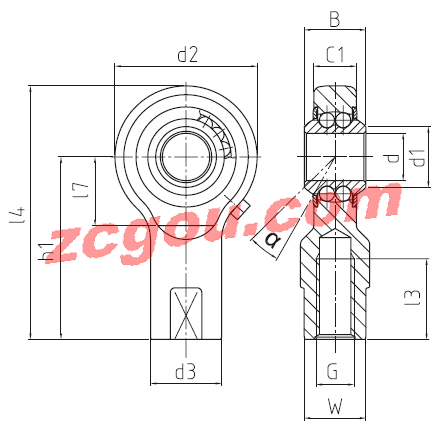

| type | right hand thread | left hand thread | d (mm) | G | B (mm) | C1 (mm) | h1 (mm) | d1 (mm) | d2 (mm) | d3 (mm) | l3 (mm) | l7 (mm) | W (mm) | tilt angle alpha (°) | weight (kg) | rotational speed limit n max. (min-1) | axial factor Y | axial factor Y0 | basic load rating dyn C (kN) | basic load rating stat Co (kN) | radial clearance CN (?m) | d (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PF 10 - 00 | -501 | -502 | 10 | M 8 | 13 | 9 | 38 | 13 | 30 | 15 | 17 | 15 | 13 | 7 | 0.063 | 1225 | 1.9 | 1.81 | 2.6 | 1 | 10 - 30 | 10 |

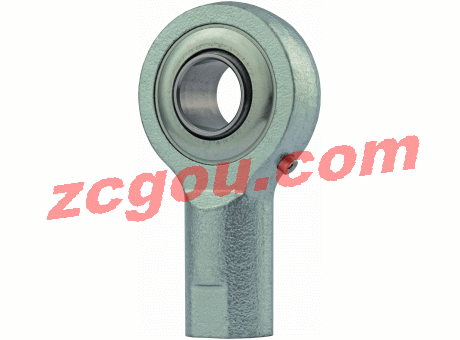

- 产品型号: PF10-00
- 主要类别：杆端关节轴承
- 应用行业:water protection,switch,industrial fans,pipe fittings Steel industry,vertical pull,Cylinder Type,storage shelves,wire industry,internal combustion engine,Individual Wire,climb ladder
- 近似型号:Carriage plate T4 PFV for LM Series PF 10 - 00 Carriage plates T4PFV for DC PF 20 - 00 Carriage plate T4 PFV for LM Series Carriage plates T4PFV for DC Guide Rollers Type PFV PF 15 - 00 Guide Rollers Type PFV
Carriage plates T4PFV for DC Carriage plates T4PFV for DC Carriage plate T4 PFV for LM Series PF20-00 Guide Rollers Type PFV Guide Rollers Type PFV PF10-00 Carriage plate T4 PFV for LM Series PF15-00 60-01-936 PF15-00 - 天津八零动力国际贸易有限公司专业经销德国DURBALPF10-00轴承，常年备货杜巴丽DURBAL PF10-00 杆端关节轴承. 我们可以快速将您所需要的德国杜尔巴DURBALPF10-00产品运送到全球任意地方购买 DURBAL PF10-00 我认准八零动力工业，价格低，品种全，交货快，质量有保证！ 杆端关节轴承订购电话022-58519723/22/21
